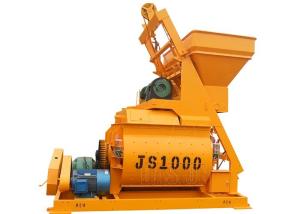

1 cubic meters large capacity cement mixer dasion js1000 concrete mixer 1m3
For providing you the suitable quotation we need to know the following information:
1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product? Once we get your answers,we can provide you the best quotation immediately. Remarks: The price will depend on different models. Reply message you will get 5% discount price.A
Concrete Mixer Machine Introduction:
1,Concrete mixer JS series are suitable for different mixing products like concrete precast for constructions such as road,bridge,water supplying,and civil engineering.
2,The mixer can produce with high efficiency dry and hard concrete, plastic concrete, light weight concrete and mortars.
3,Equipment can independent operation, and it can be formed with the corresponding ingredients to a simple mixing station unit.
4, Adopt the national standard element, the quality is reliable.
Concrete Mixer Machine Parameters:
| Model | Unit | JS500 | JS750 | YJS1000 | JS2000 |
| Mixer Capacity | m3/h | 25 | 35 | 50 | 100 |
| Discharging capacity | L | 500 | 750 | 1000 | 2000 |
| Charging capacity | L | 800 | 1200 | 1600 | 3000 |
| Max. aggregate size | mm | 80/60 | 80/60 | 80/60 | 80/60 |
| Mixing circle | s | 72 | 72 | 72 | 60 |
| Mixing blade | Rational speed | r/min | 35 | 31 | 25.5 | 23 |
| Quantity | pcs | 2x7 | 2x7 | 2x7 | 2x9 |
| Mixing motor power | kw | 18.5 | 30 | 37 | 75 |
| Hoist motor power | kw | 5.5 | 7.5 | 18 | 22 |
| Pump motor power | kw | 0.75 | 1.1 | 3 | 4 |
| Dimension | mm | 4461x3050x52 25 | 4951x3650x62 25 | 8765x6436x95 40 | 10720x3870x10 726 |
| Total weight | kg | 4000 | 5500 | 8700 | 15000 |
| Discharging height | mm | 1500/2700/3800 | 1500/2700/3800 | 2700/3800 | 3800 |
Concrete Mixer Machine Deatils:
|
Mixing Blades |
Electric Lubricating Pump |
|
Gear Box(Reducer) |
Discharging System |
1.Mixing blades
The mixing system adopt the design of multi mixing blades, free of dead corner, which enables to have the perfect mixing efficiency in a short time.
2. Electric lubricating pump
National patent host monitoring system can monitor hydraulic pump ,retarder oil temperature, oil level. Users could discover and deal with faults in time, which could improve the service life.
3. Gear box(Reducer)
Adopt Italy gear box, long service life,lower noise, no oil leakage.
4. Discharging system
Advanced hydraulic discharging door . In condition of sudden power outage ,the discharging door can be opened by hand, prevent concrete from lumping in the mixer.
Concrete Mixer Machine Process:
