Js Series 500 Litres Double Spiral Twin Shaft Js500 Electrical Concrete Mixers
Description of JS500 Electrical Concrete Mixer:
1. Js series JS500 Concrete Mixer are the main products of Henan Dasion Machinery Co.,Ltd. This series of mixing equipment has the advantages of single-machine independent operation. The cement mixers can be used as a simple concrete mixing plant with PLD series batching machine. It also can stir hard concrete, plastic concrete, fluidity concrete, lightweight aggregate concrete and various mortars, which is an efficient mixer.
2. The series of product design structure is reasonable, easy to use and maintenance.The user can be equipped with a dump truck, self-loading truck, mixer, and it can be modified according to the special requirements of the user to meet the customer’s needs.

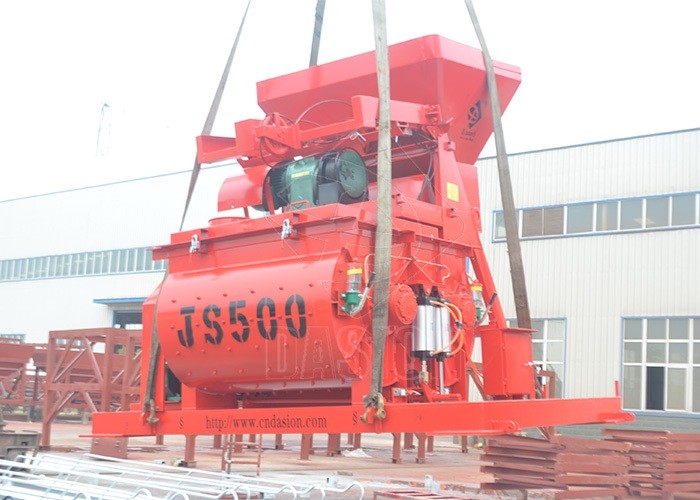

Pictures of JS500 Electrical Concrete Mixer:
Parameters of JS series Electrical Concrete Mixer:
| Model | Unit | JS500 | JS750 | YJS1000 | JS2000 |
| Mixer Capacity | m3/h | 25 | 35 | 50 | 100 |
| Discharging capacity | L | 500 | 750 | 1000 | 2000 |
| Charging capacity | L | 800 | 1200 | 1600 | 3000 |
| Max. aggregate size | mm | 80/60 | 80/60 | 80/60 | 80/60 |
| Mixing circle | s | 72 | 72 | 72 | 60 |
| Mixing blade | Rational speed | r/min | 35 | 31 | 25.5 | 23 |
| Quantity | pcs | 2x7 | 2x7 | 2x7 | 2x9 |
| Mixing motor power | kw | 18.5 | 30 | 37 | 75 |
| Hoist motor power | kw | 5.5 | 7.5 | 18 | 22 |
| Pump motor power | kw | 0.75 | 1.1 | 3 | 4 |
| Dimension | mm | 4461x3050x52 25 | 4951x3650x62 25 | 8765x6436x95 40 | 10720x3870x10 726 |
| Total weight | kg | 4000 | 5500 | 8700 | 15000 |
| Discharging height | mm | 1500/2700/3800 | 1500/2700/3800 | 2700/3800 | 3800 |
Detailed Images of JS500 Electrical Concrete Mixer:
Advantages of JS500 Electrical concrete mixer:
1. JS1500 forced concrete mixer can not only stir harsh concrete, but stir light-weight aggregate concrete, and make concrete achieve strong stirring effect.
2. The discharge door is installed at the bottom of the mixer, and the unloading is accomplished through the cylinder. The discharge doors can be sealed by adjusting the sealing position.
3. Adopting imported components, and mixing tube diameter is smaller in half than that of the capacity of vertical shaft.
4. Blade rotation speed is smaller half than the vertical shaft type's, so the blade and liner wear small, long service life.
Why Choose Us:
1.High quality pipe with reasonable price.
2.Advanced test equipments and professional inspection measures to guarantee our quality.
3.Our products are widely used in construction, water supply and other fields.
4.The after-sale service is good, customers can buy our products without any worries.
5.We can produce different kinds of pipes according to customers’ requirements.
6.We have exported our products to many foreign countries. Our products are popular among these countries.
7.Professional staff can save your time and money.
